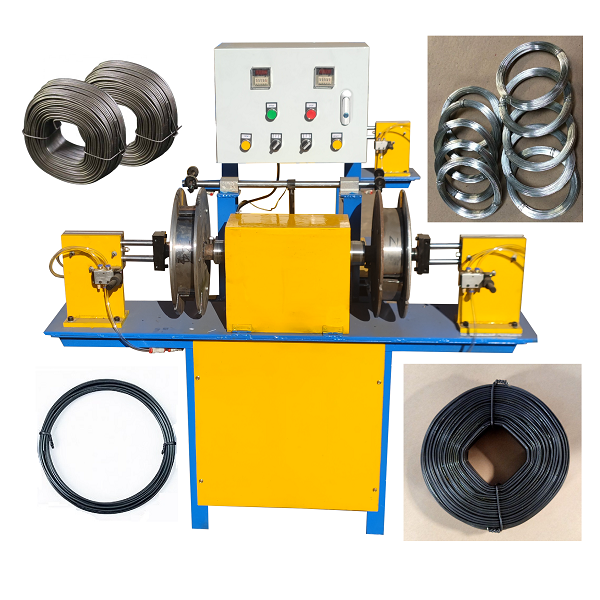

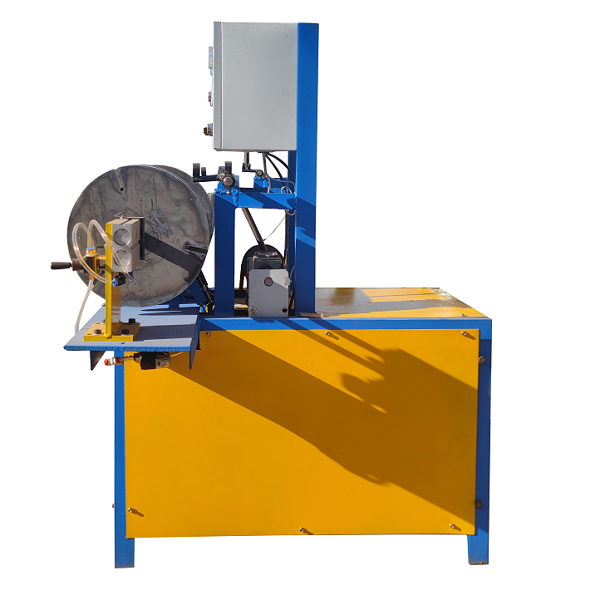

Single Wire winding machine


The single wire winding machine is designed to produce single galvanized wire or annealed black wire.


It is safe and reliable in operation, capable of consistently producing high-quality products.


Two models:


STI-SW-200A ( Annealed black wire)


 The finished shape can be customized

Final Product Coiled Annealed black wire specification,

Diameter: 1.588mm (0.063 Inch.)

Tolerance:±0.1mm (±0.005Inch.)

Height (Coil thickness):

31.0mm(1.22 Inch.)

Width (Outer diameter):

121.5mm(4.78 Inch.)

In Side (Inner diameter):

39.1mm 43.2mm(1.54 Inch. 1.70 Inch.)

Weight:

1.57-1.59 kg (3.50 Pounds)


Final product:




STI-SW-200B ( Galvanized wire)


Final Product Coiled Galvanized Wire specification,

Diameter:

1.2-1.58mm (0.048-0.062 Inch.)

Tolerance:±0.1mm (±0.005Inch.)

Height (Coil thickness):

33.0mm(1.30 Inch.)

Width (Outer diameter):

160.0mm(6.30 Inch.)

In Side (Inner diameter):

116.8mm(4.60 Inch.)

Weight:1.0kg(2.20 Pounds)

Interior reel specifications be designed according to the upon coil galvanized wire specifications.

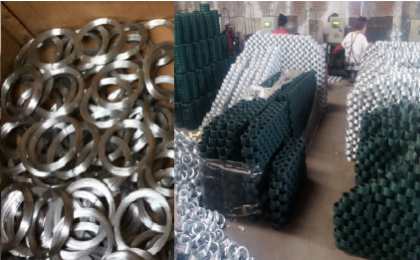

Final product:




Packing :  plywood case


Our service:


Quality assurance and we will do our best to meet customer needs.
