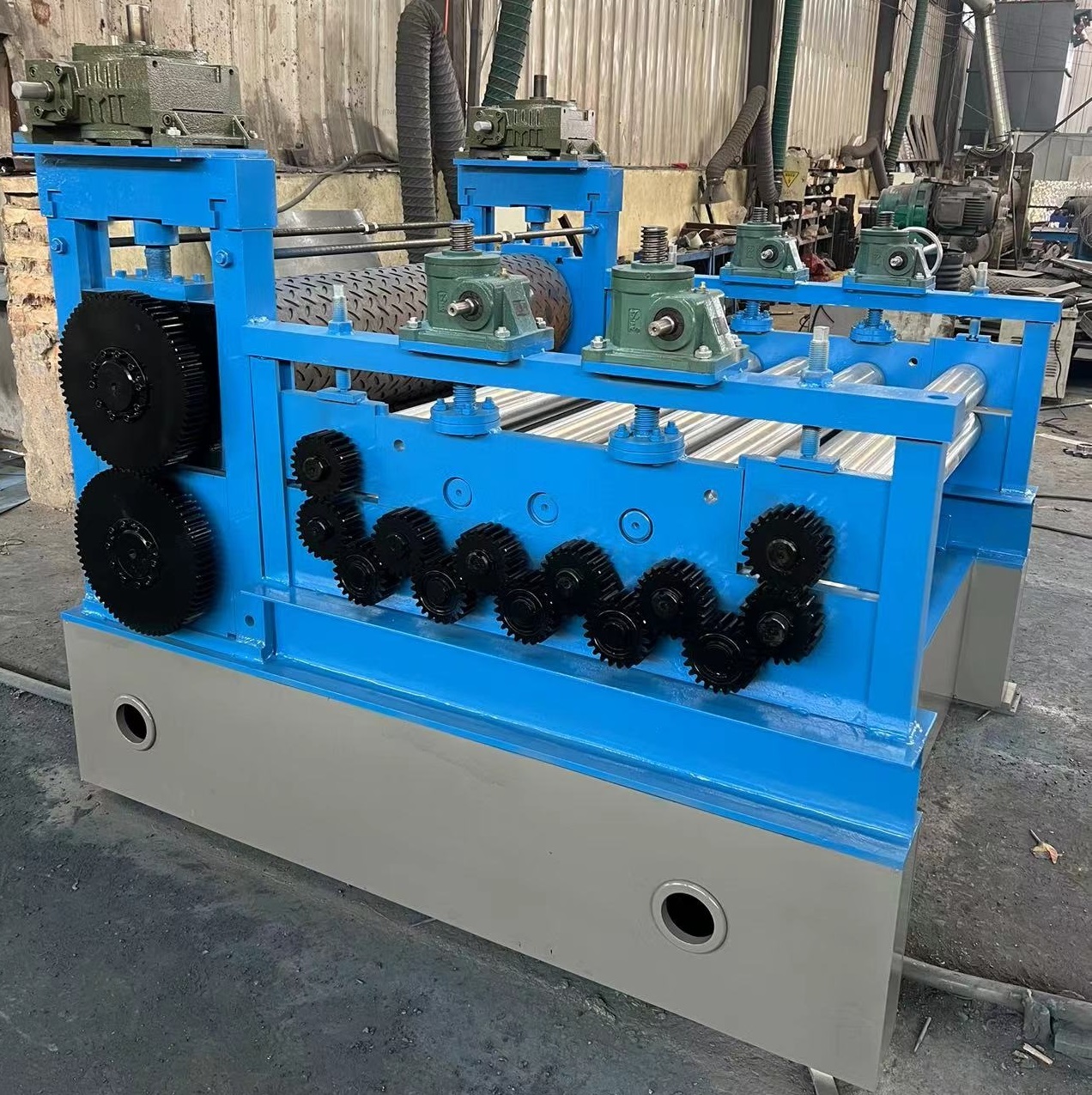

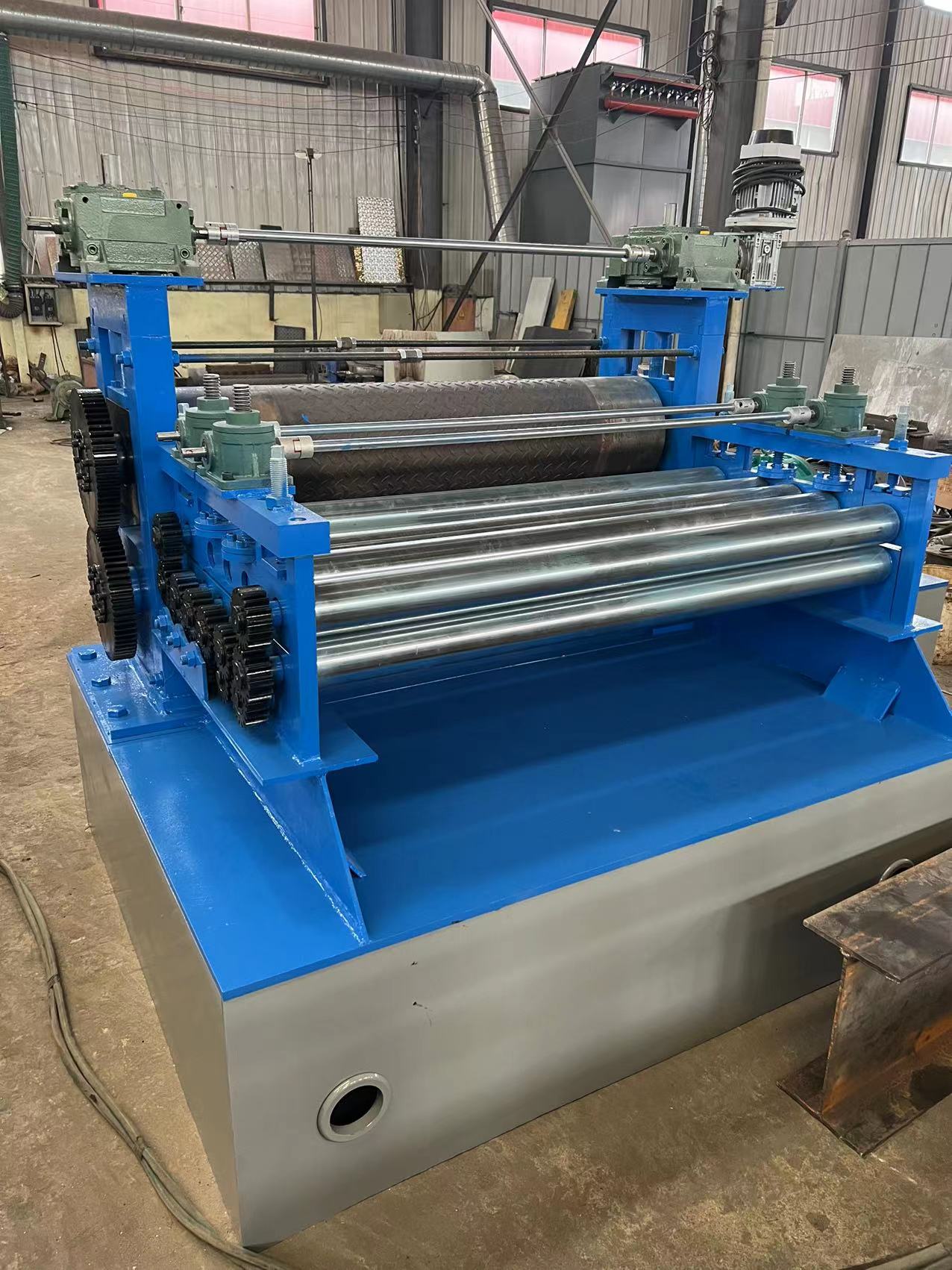

Straightening and Embossing machine for checkered plates

Parameters:

Equipment technical parameters:

Large frame base: welding box

Embossed vertical plate: 80mm medium plate

Number of forming passers: Upper and lower 2 shafts are rolled and formed

Pressing shaft diameter: 340mm solid shaft diameter

Up and and lower adjustment: Installing a hand-cranked synchronous elevator can easily adjust the size of the gap between the upper and lower embossed shafts

Presser material: 45 steel material modulation, CNC engraving, quenching treatment

Leveling shaft diameter: 115mm solid shaft diameter

Number of leveling tracks: up 5 down 6, 11 axes leveling For more details please feel free to contact us Whatsapp +86 18324717703
